Cable Selector

The majority of quality E-Stim kit will use some variation of the 4mm banana plug and a 3.5mm mono jack. Equipment that is related to TENS equipment will generally use a TENS pin on one end, and some form of connection on the other. Equipment at the cheaper end of the TENS market even does away with the connection to the control box and offers the 'hard wired' option...the cable just enters the box. Cheap and not very durable, and an issue if you want to replace the cable for a longer version.

Standard Connection Types

Our Standard control units use 3.5mm mono jack sockets. The other end of the cable (the connections to the electrodes), will either be 4mm colour coded plugs or 2mm colour coded plugs. We can also provide lower profile 4mm right angled plugs which are designed to work with our larger premium electrodes for a more discreet fitting.

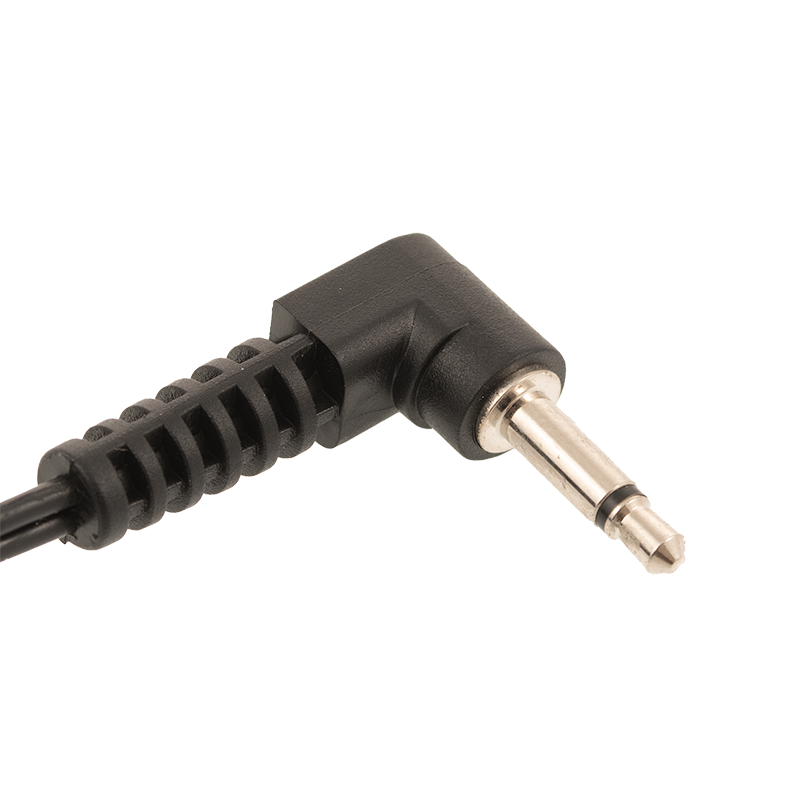

image of right angle 3.5mm jack plug
3.5mm Mono Jack

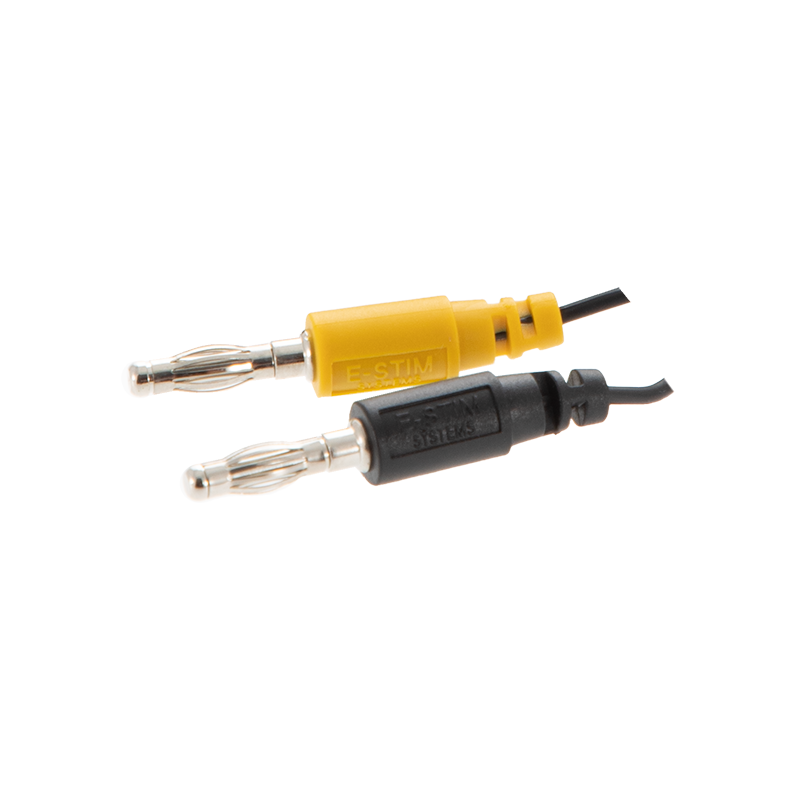

Image of 4mm Plug
4mm Plug

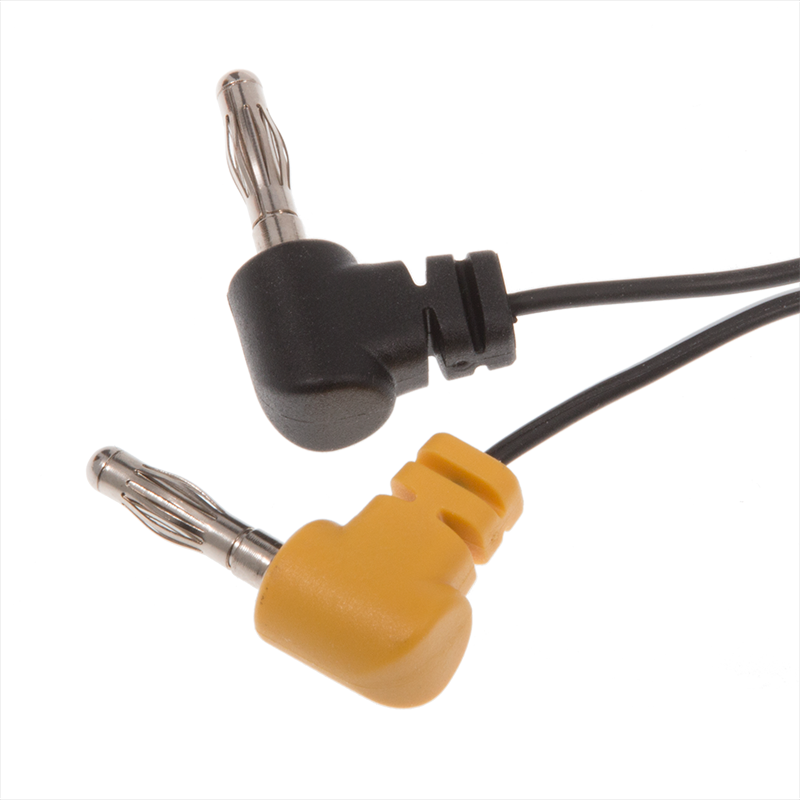

Image of 4mm Low Profile Plug
4mm Low Profile Plug

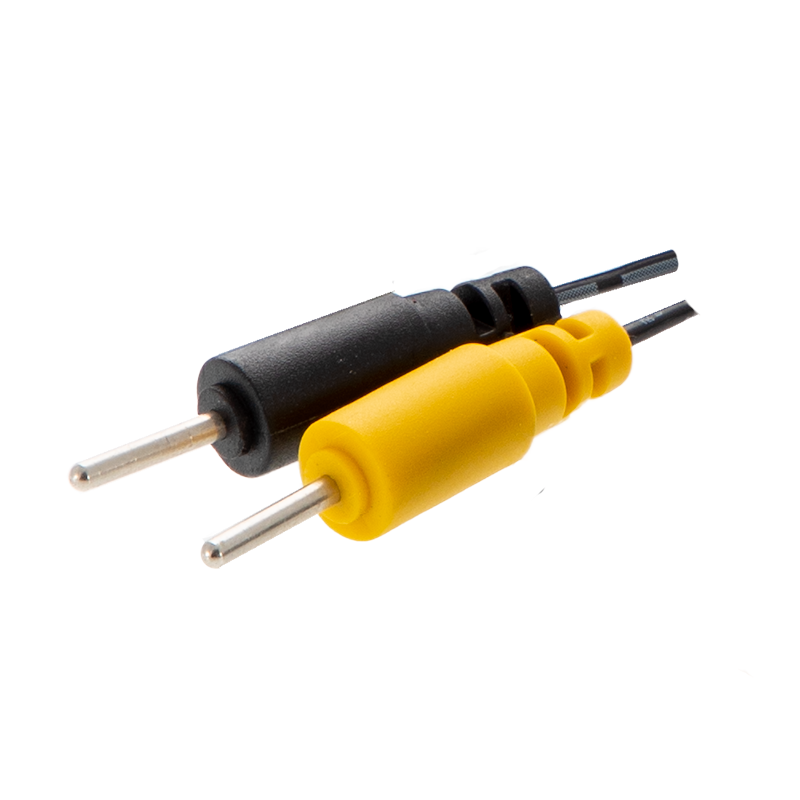

Image of 2mm/TENS plug
2mm/TENS plug

What cable do I need?

With all the different cables around it is sometimes confusing knowing what cable goes with what. So if you have any E-Stim Systems powerbox, or even a unit from MyStim, ErosTek, Electrastim, or even a TENS unit, then you can use our cable selector to work out what you need.

Simply select the control unit you have, or are planning to buy, and the E-Stim Systems electrode you wish to connect to and hit the Submit button. If the unit you have is not listed, then drop us an email and we will try to advise you on your options.

Select Powerbox

Choose the powerbox from the dropdown list. If you box is not listed, then give us a call.

choose electrode

Choose the electrode you wish to connect to the powerbox you have selected.
